FAQ

General

Q. Ruffus won’t create dependency graphs

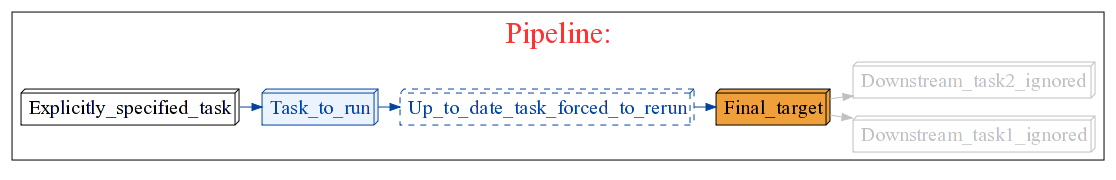

A. You need to have installed dot from Graphviz to produce pretty flowcharts likes this:

_images/pretty_flowchart.png

Q. Ruffus seems to be hanging in the same place

A. If ruffus is interrupted, for example, by a Ctrl-C, you will often find the following lines of code highlighted:

File "build/bdist.linux-x86_64/egg/ruffus/task.py", line 1904, in pipeline_run
File "build/bdist.linux-x86_64/egg/ruffus/task.py", line 1380, in run_all_jobs_in_task
File "/xxxx/python2.6/multiprocessing/pool.py", line 507, in next
  self._cond.wait(timeout)
File "/xxxxx/python2.6/threading.py", line 237, in wait
  waiter.acquire()

This is not where ruffus is hanging but the boundary between the main programme process and the sub-processes which run ruffus jobs in parallel.

This is naturally where broken execution threads get washed up onto.

Q. Regular expression substitutions don’t work

A. If you are using the special regular expression forms "\1", "\2" etc. to refer to matching groups, remember to ‘escape’ the subsitution pattern string. The best option is to use ‘raw’ python strings. For example:

r"\1_substitutes\2correctly\3four\4times"

Ruffus will throw an exception if it sees an unescaped "\1" or "\2" in a file name.

Q. How to use decorated functions in Ruffus

A. Place your decorator after Ruffus decorators. This ensures that by the time Ruffus sees your function, it has already been decorated.

@transform(["example.abc"], suffix(".abc"), ".xyz")
@custom_decoration
def func(input, output):
    pass

You will also need to use either @wraps or update_wrapper from functools to write your decorator:

def custom(task_func):
    """ Decorate a function to print progress
    """
    @wraps(task_func)
    def wrapper_function(*args, **kwargs):
        print "Before"
        task_func(*args, **kwargs)
        print "After"

    return wrapper_function

This ensures that the __name__ and __module__ attributes from the task function are made available to Ruffus via your decorator.

Q. Can a task function in a Ruffus pipeline be called normally outside of Ruffus?

A. Yes. Most python decorators wrap themselves around a function. However, Ruffus leaves the original function untouched and unwrapped. Instead, Ruffus adds a pipeline_task attribute to the task function to signal that this is a pipelined function.

This means the original task function can be called just like any other python function.

Q. My tasks creates two files but why does only one survive in the ruffus pipeline?

from ruffus import *
import sys
@transform("start.input", regex(".+"), ("first_output.txt", "second_output.txt"))
def task1(i,o):
    pass

@transform(task1, suffix(".txt"), ".result")
def task2(i, o):
    pass

pipeline_printout(sys.stdout, [task2], verbose=3)
________________________________________
Tasks which will be run:

Task = task1
       Job = [start.input
             ->[first_output.txt, second_output.txt]]

Task = task2
       Job = [[first_output.txt, second_output.txt]
             ->first_output.result]

________________________________________

A: This code produces a single output of a tuple of 2 files. In fact, you want two outputs, each consisting of 1 file.

You want a single job (single input) to be produce multiple outputs (multiple jobs in downstream tasks). This is a one-to-many operation which calls for @split:

from ruffus import *
import sys
@split("start.input", ("first_output.txt", "second_output.txt"))
def task1(i,o):
    pass

@transform(task1, suffix(".txt"), ".result")
def task2(i, o):
    pass

pipeline_printout(sys.stdout, [task2], verbose=3)
________________________________________
Tasks which will be run:

Task = task1
       Job = [start.input
             ->[first_output.txt, second_output.txt]]

Task = task2
       Job = [first_output.txt
             ->first_output.result]
       Job = [second_output.txt
             ->second_output.result]

________________________________________

Q. How can a Ruffus task produce output which goes off in different directions?

A. As above, anytime there is a situation which requires a one-to-many operation, you should reach for @split. The advanced form takes a regular expression, making it easier to produce multiple derivatives of the input file. The following example splits 2 jobs each into 3, so that the subsequence task will run 2 x 3 = 6 jobs.

from ruffus import *
import sys
@split(["1.input_file",
        "2.input_file"],
        regex(r"(.+).input_file"),      # match file prefix
       [r"\1.file_type1",
        r"\1.file_type2",
        r"\1.file_type3"])
def split_task(input, output):
   pass


@transform(split_task, regex("(.+)"), r"\1.test")
def test_split_output(i, o):
   pass

pipeline_printout(sys.stdout, [test_split_output], verbose = 3)

Each of the original 2 files have been split in three so that test_split_output will run 6 jobs simultaneously.

________________________________________
Tasks which will be run:

Task = split_task
       Job = [1.input_file ->[1.file_type1, 1.file_type2, 1.file_type3]]
       Job = [2.input_file ->[2.file_type1, 2.file_type2, 2.file_type3]]

Task = test_split_output
       Job = [1.file_type1 ->1.file_type1.test]
       Job = [1.file_type2 ->1.file_type2.test]
       Job = [1.file_type3 ->1.file_type3.test]
       Job = [2.file_type1 ->2.file_type1.test]
       Job = [2.file_type2 ->2.file_type2.test]
       Job = [2.file_type3 ->2.file_type3.test]
________________________________________

Q. Can I call extra code before each job?

A. This is easily accomplished by hijacking the process for checking if jobs are up to date or not (@check_if_uptodate):

from ruffus import *
import sys

def run_this_before_each_job (*args):
    print "Calling function before each job using these args", args
    # Remember to delegate to the default Ruffus code for checking if
    #   jobs need to run.
    return needs_update_check_modify_time(*args)

@check_if_uptodate(run_this_before_each_job)
@files([[None, "a.1"], [None, "b.1"]])
def task_func(input, output):
    pass

pipeline_printout(sys.stdout, [task_func])

This results in:

________________________________________
>>> pipeline_run([task_func])
Calling function before each job using these args (None, 'a.1')
Calling function before each job using these args (None, 'a.1')
Calling function before each job using these args (None, 'b.1')
    Job = [None -> a.1] completed
    Job = [None -> b.1] completed
Completed Task = task_func

Note

Because run_this_before_each_job(...) is called whenever Ruffus checks to see if a job is up to date or not, the function may be called twice for some jobs (e.g. (None, 'a.1') above).

Q. Does Ruffus allow checkpointing: to distinguish interrupted and completed results?

(Thanks to Bernie Pope for sorting this out.)

A. When gmake is interrupted, it will delete the target file it is updating so that the target is remade from scratch when make is next run.

There is no direct support for this in ruffus yet. In any case, the partial / incomplete file may be usefully if only to reveal, for example, what might have caused an interrupting error or exception.

A common Ruffus convention is create an empty checkpoint or “flag” file whose sole purpose is to record a modification-time and the successful completion of a job.

This would be task with a completion flag:

#
#   Assuming a pipelined task function named "stage1"
#
@transform(stage1, suffix(".stage1"), [".stage2", ".stage2_finished"] )
def stage2 (input_files, output_files):
    task_output_file, flag_file = output_files
    cmd = ("do_something2 %(input_file)s >| %(task_output_file)s ")
    cmd = cmd % {
                    "input_file":               input_files[0],
                    "task_output_file":         task_output_file
                }
    if not os.system( cmd ):
        #88888888888888888888888888888888888888888888888888888888888888888888888888888
        #
        #   It worked: Create completion flag_file
        #
        open(flag_file, "w")
        #
        #88888888888888888888888888888888888888888888888888888888888888888888888888888

The flag_files xxx.stage2_finished indicate that each job is finished. If this is missing, xxx.stage2 is only a partial, interrupted result.

The only thing to be aware of is that the flag file will appear in the list of inputs of the downstream task, which should accordingly look like this:

@transform(stage2, suffix(".stage2"), [".stage3", ".stage3_finished"] )
def stage3 (input_files, output_files):

    #888888888888888888888888888888888888888888888888888888888888888888888888888888888
    #
    #   Note that the first parameter is a LIST of input files, the last of which
    #       is the flag file from the previous task which we can ignore
    #
    input_file, previous_flag_file  = input_files
    #
    #888888888888888888888888888888888888888888888888888888888888888888888888888888888
    task_output_file, flag_file     = output_files
    cmd = ("do_something3 %(input_file)s >| %(task_output_file)s ")
    cmd = cmd % {
                    "input_file":               input_file,
                    "task_output_file":         task_output_file
                }
    # completion flag file for this task
    if not os.system( cmd ):
        open(flag_file, "w")

The Bioinformatics example contains code for checkpointing.

Windows

Q. Windows seems to spawn ruffus processes recursively

A. It is necessary to protect the “entry point” of the program under windows. Otherwise, a new process will be started each time the main module is imported by a new Python interpreter as an unintended side effects. Causing a cascade of new processes.

See: http://docs.python.org/library/multiprocessing.html#multiprocessing-programming

This code works:

if __name__ == '__main__':
    try:
        pipeline_run([parallel_task], multiprocess = 5)
except Exception, e:
    print e.args

Sun Grid Engine

Q. qrsh eats up all my processor time under ruffus

A. Sun Grid Engine provides the qrsh command to run an interactive rsh session. qrsh can be used to run commands/scripts in a compute farm or grid cluster.

However, when run within ruffus, qrsh seems to spin idly, polling for input, consuming all the CPU resources in that process.

An interim solution is to close the STDIN for the qrsh invocation:

from subprocess import Popen, PIPE
qrsh_cmd = ["qrsh",
            "-now", "n",
            "-cwd",
            "-p", "-%d" % priority,
            "-q",  queue_name,
            "little_script.py"]
p = Popen(qrsh_cmd, stdin = PIPE)
p.stdin.close()
sts = os.waitpid(p.pid, 0)

Q. When I submit lots of jobs at the same time, SGE freezes and dies

A. This seems to be dependent on your setup. One workaround may be to introduce a random time delay at the beginining of your jobs:

import time, random
@parallel(param_func)
def task_in_parallel(input_file, output_file):
    """
    Works starts after a random delay so that SGE has a chance to manage the queue
    """
    time.sleep(random.random() / 2.0)

    # Wake up and do work
